Job completed for Identification Plates, Inc.

Completion date: March 7, 2020

Location: Mesquite, TX

Why did the customer contact us?

ID Plates found us on the internet and contacted us about upgrade there data network from Cat 5 to Cat6 with adding alot of additional drops to new areas.

Solutions provided:

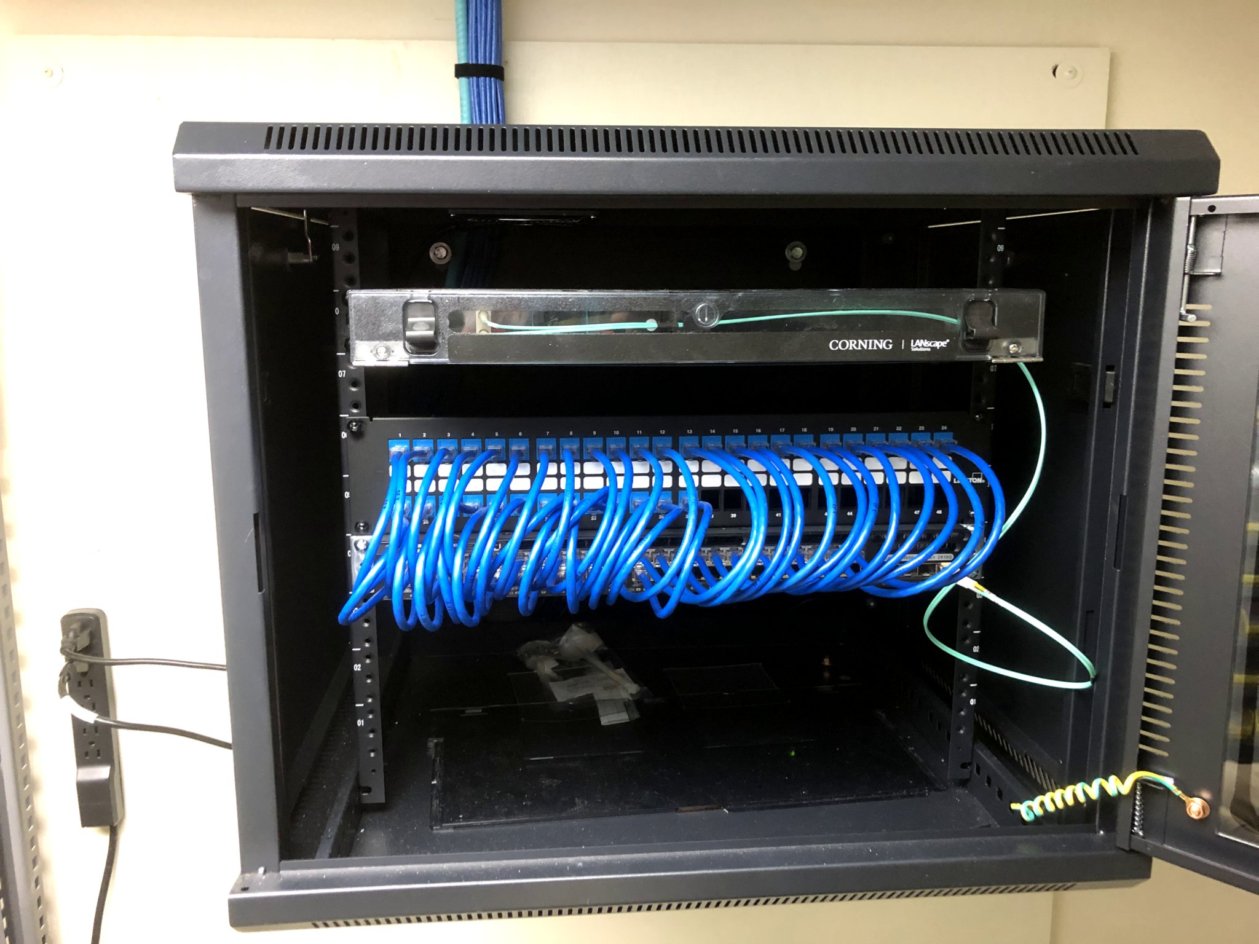

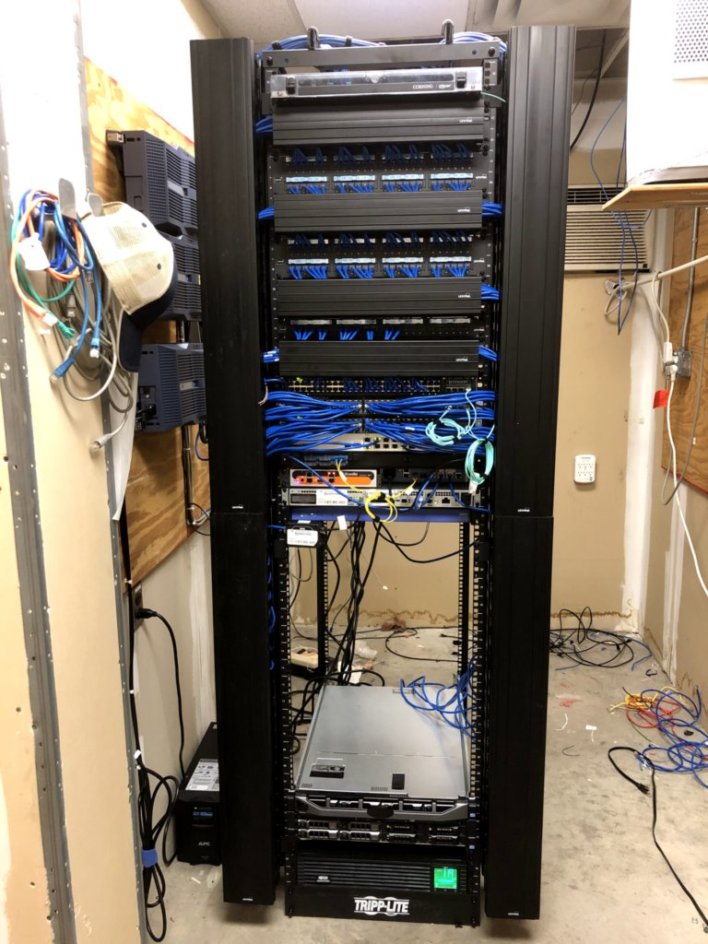

We went on-site and determined this was basically two network cabling projects. The easier project was the Cat 6 cabling that would be running to the IDF cabinet at one end of the building. This IDF was connected back to the main data room with OM3 multimode fiber optic cabling. The more difficult part of the project was the cabling that ran to the main data room. There was an existing data rack that we had to work around and ultimately help the customer move out of the data room after moving all of his network gear into the new rack. We completely built out the new data rack with all of the customer's new and existing hardware.

One of the challenges of this project was our lead tech getting vertigo from a previous ear infection that caused him to be out of work for over a month. We really missed him on this project and it caused us to ask for an additional week to complete the project. Our customers where very gracious and kind to our timeline and we completed the project on our second target date.

On this project we installed over 150 Cat 6 cables, a 10G 6 strand Multimode fiber optic cable, one data rack and one network cablinet.

Team members on this project:

Clint Polley, Jose Garcia
